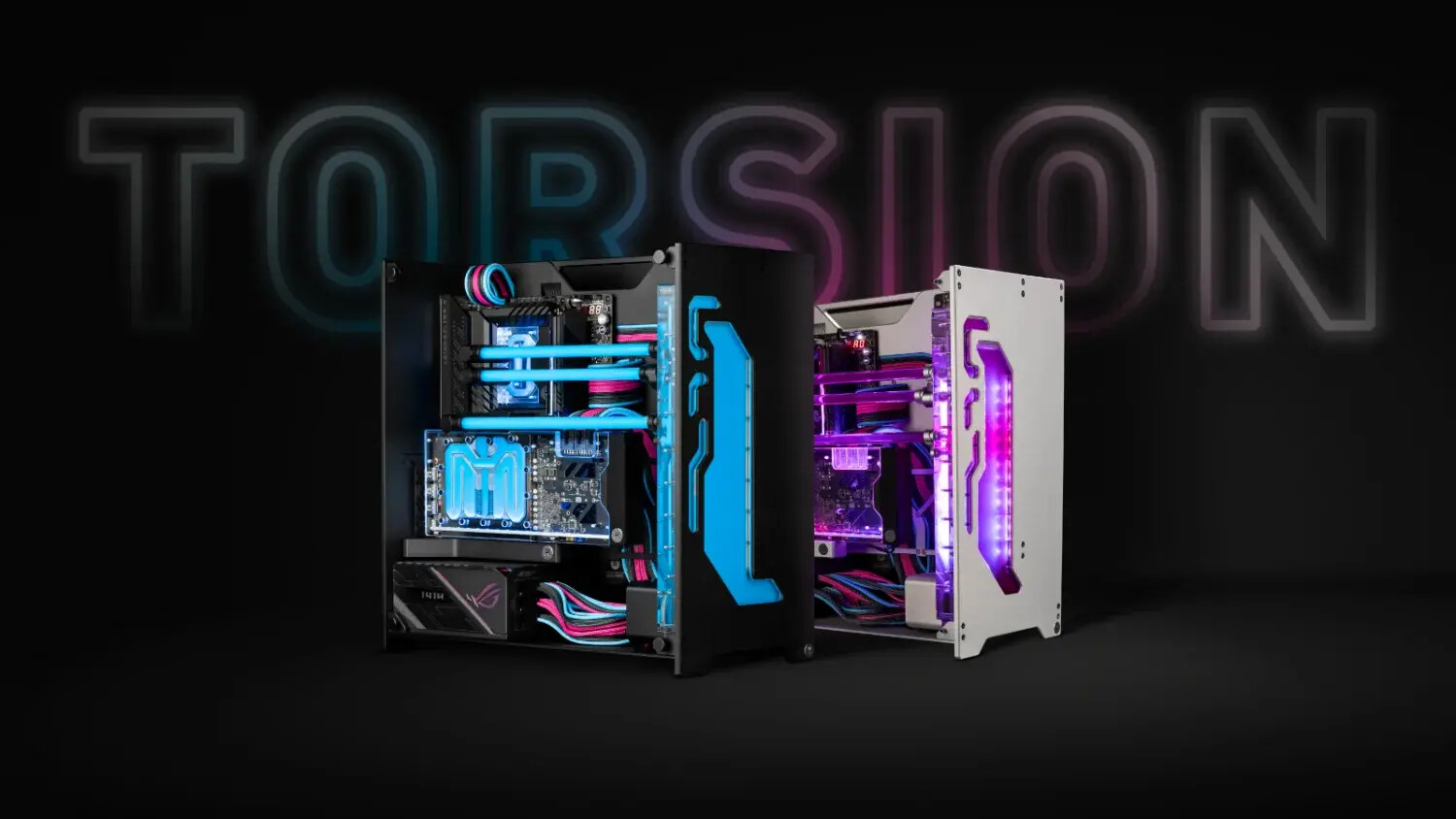

EK-Quantum Torsion A60 Limited Edition PC Case

Introducing the limited edition EK-Quantum Torsion A60 PC case, designed specifically for liquid-cooled builds. This premium case is constructed entirely of CNC-milled aluminium, weighing approximately 22 kg. It is not just a case, but a statement piece for water-cooling enthusiasts. The EK-Quantum Torsion A60 features machined channels for custom-sleeved cables and an integrated D5-powered distribution plate, making it a true marvel. It is compatible with mid-tower standard and can accommodate up to three medium-thick EK-Quantum Surface P360 radiators. Other notable features include a tempered glass side panel, an integrated vertical GPU bracket, and support for ATX and E-ATX motherboards.

Crafted in Aluminium, Cooled in Style

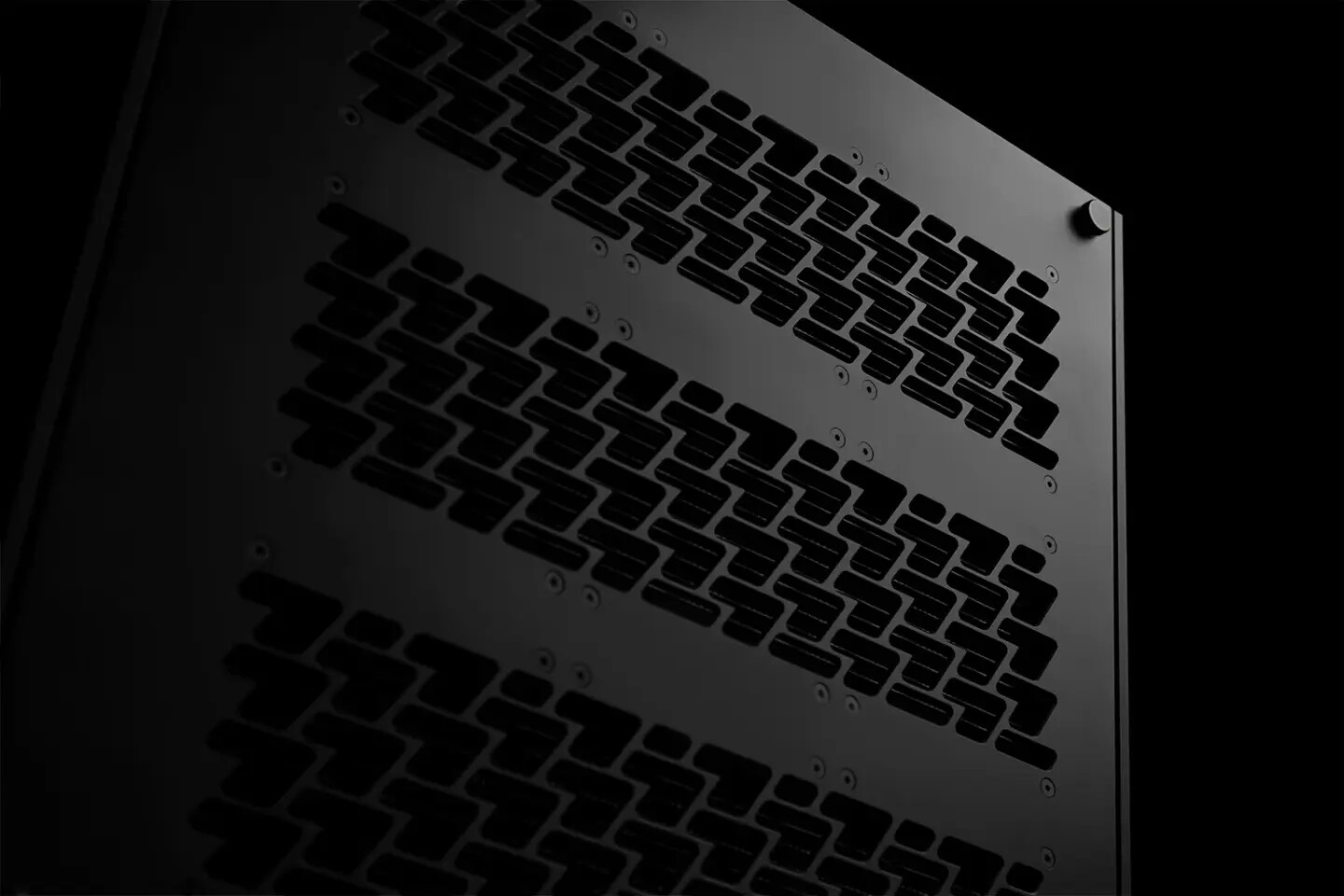

The EK-Quantum Torsion A60 boasts a chassis made entirely of 6082 aluminium alloy, created using state-of-the-art CNC machining. This alloy offers exceptional strength and corrosion resistance, resulting in a durable and elegant case. The meticulously engineered design showcases attention to detail, providing the perfect canvas for your liquid cooling ambitions. The case can be disassembled, customized, and modified with ease. It is available in two color options: satin Black or satin Silver.

Limited Edition, Unique Opportunity

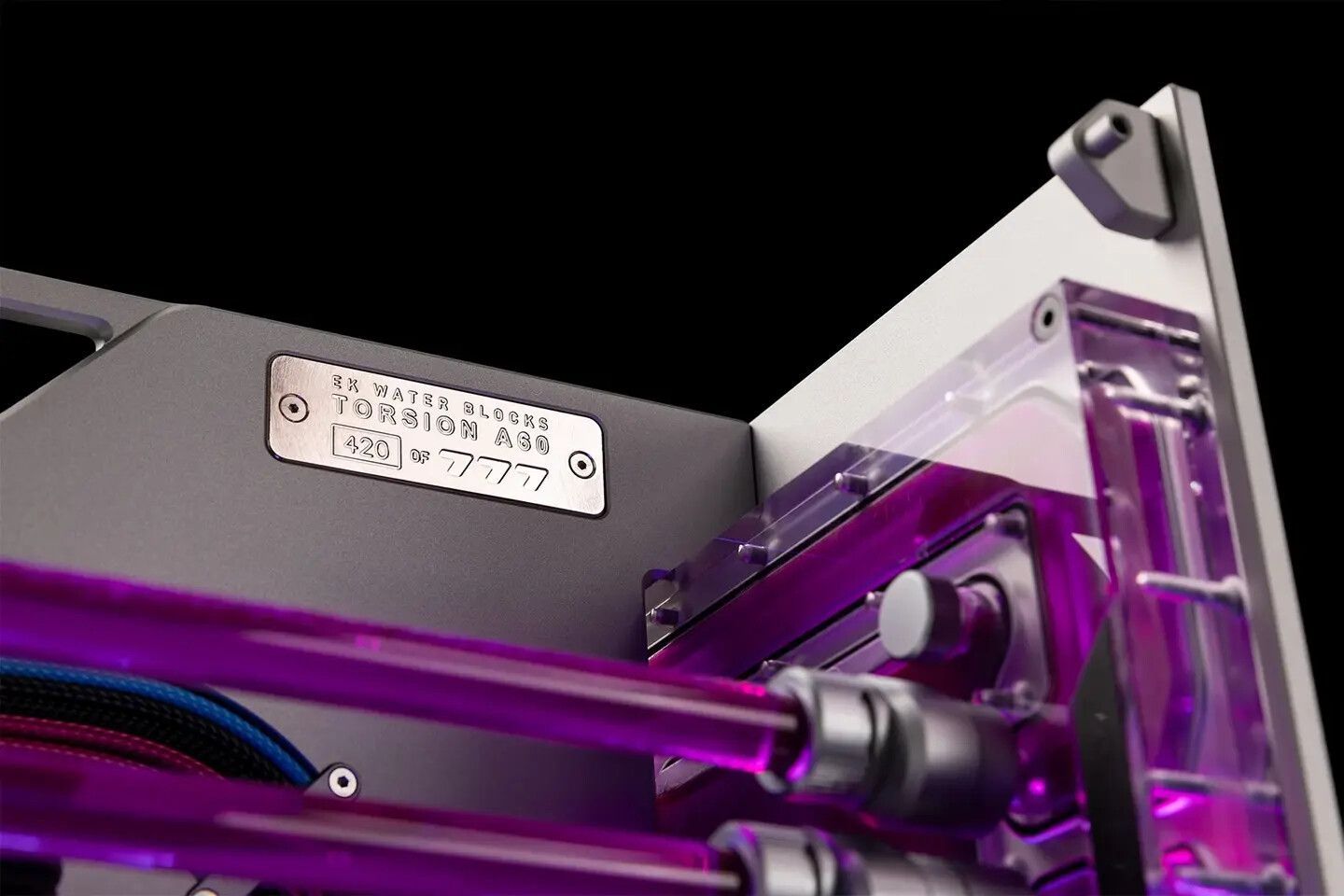

This case is a limited edition with only 777 pieces produced. Two-thirds of the production will be Black, while one-third will be Silver. Each chassis will have a unique serial number engraved on a plate displayed near the top of the motherboard tray.

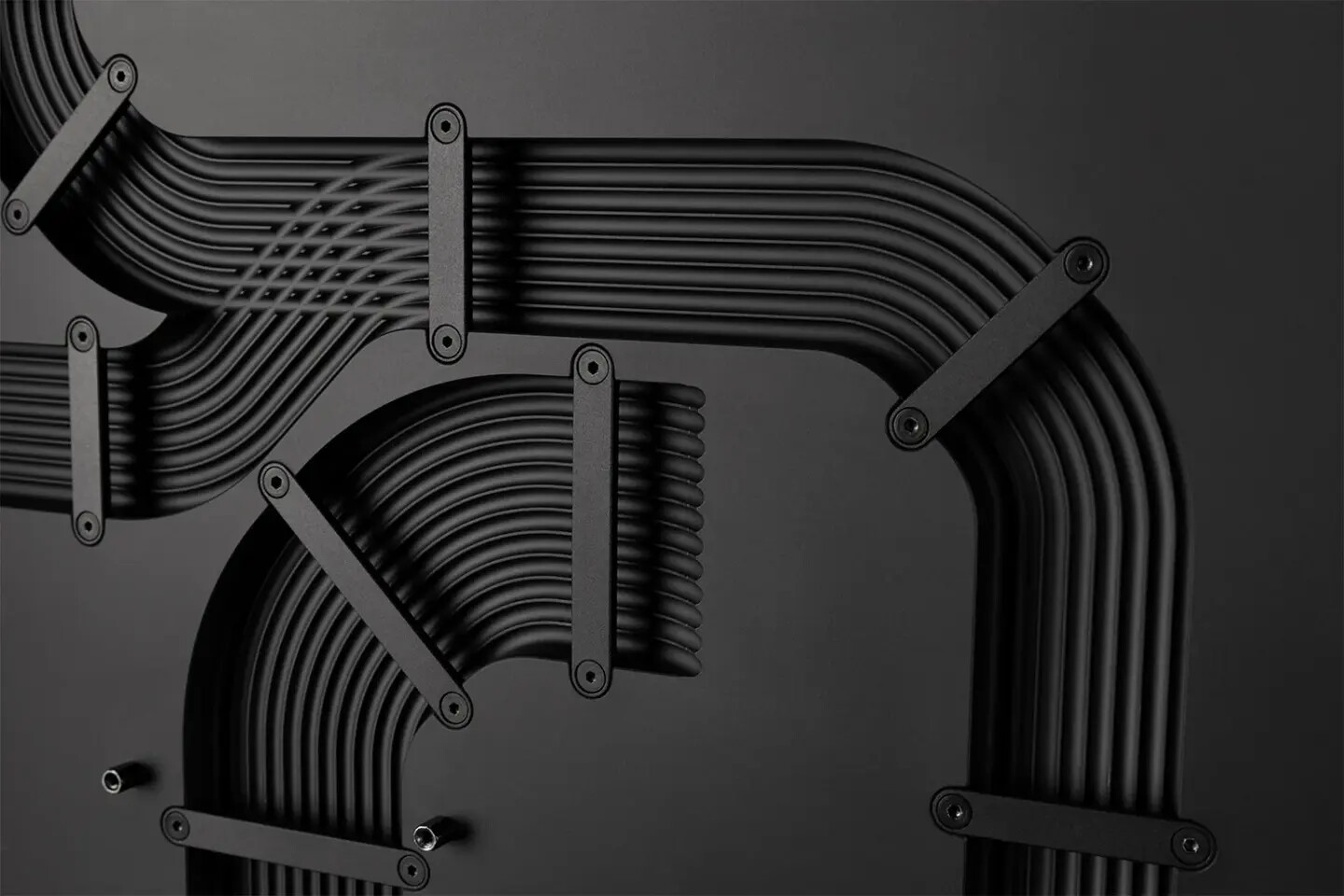

Cable Channels With Aluminium Cable Holders

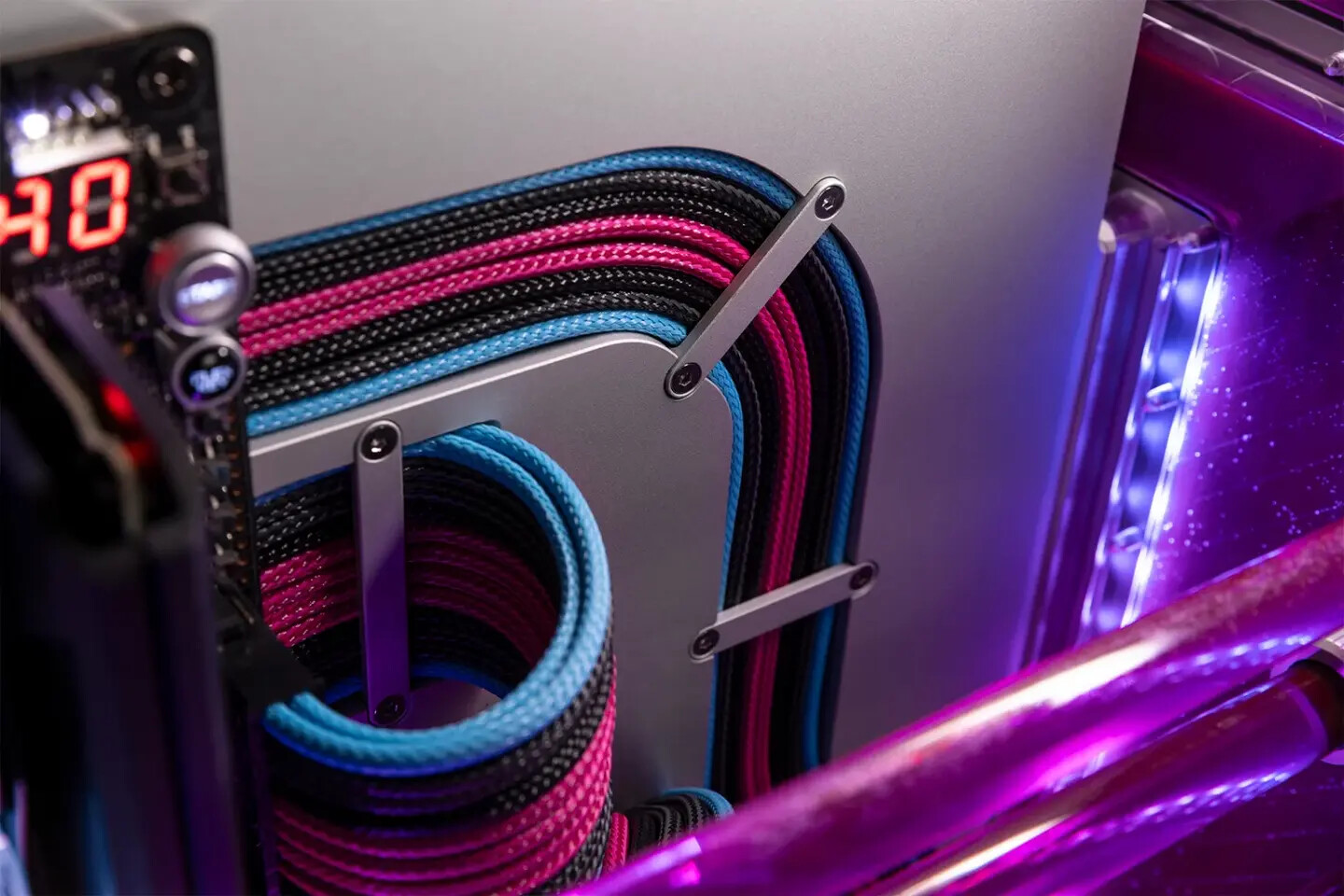

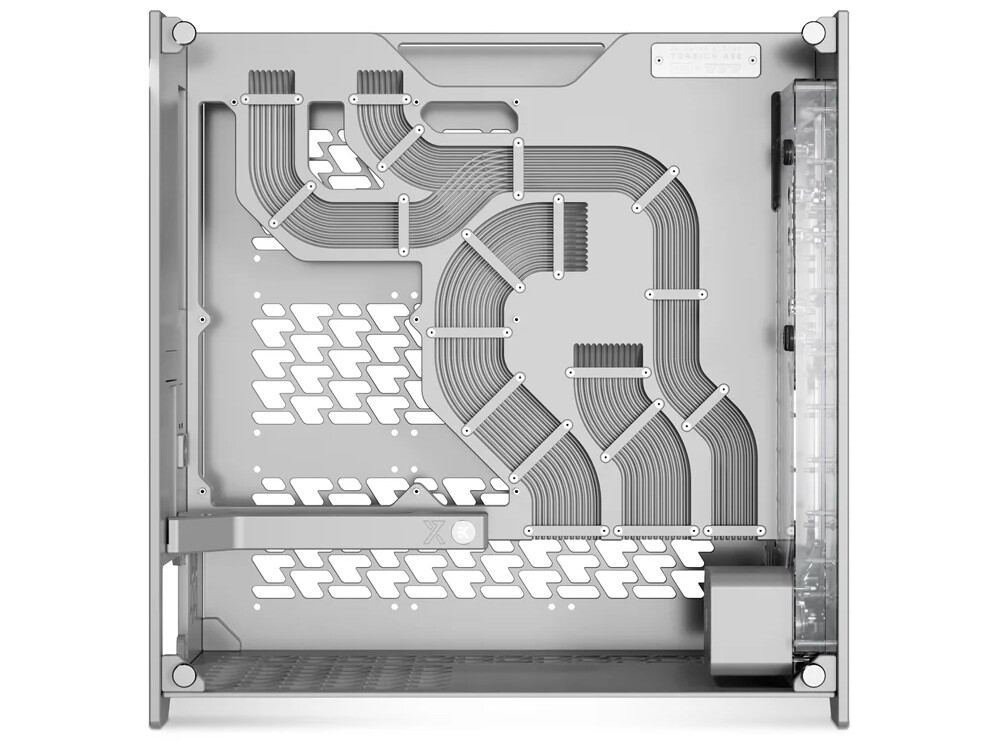

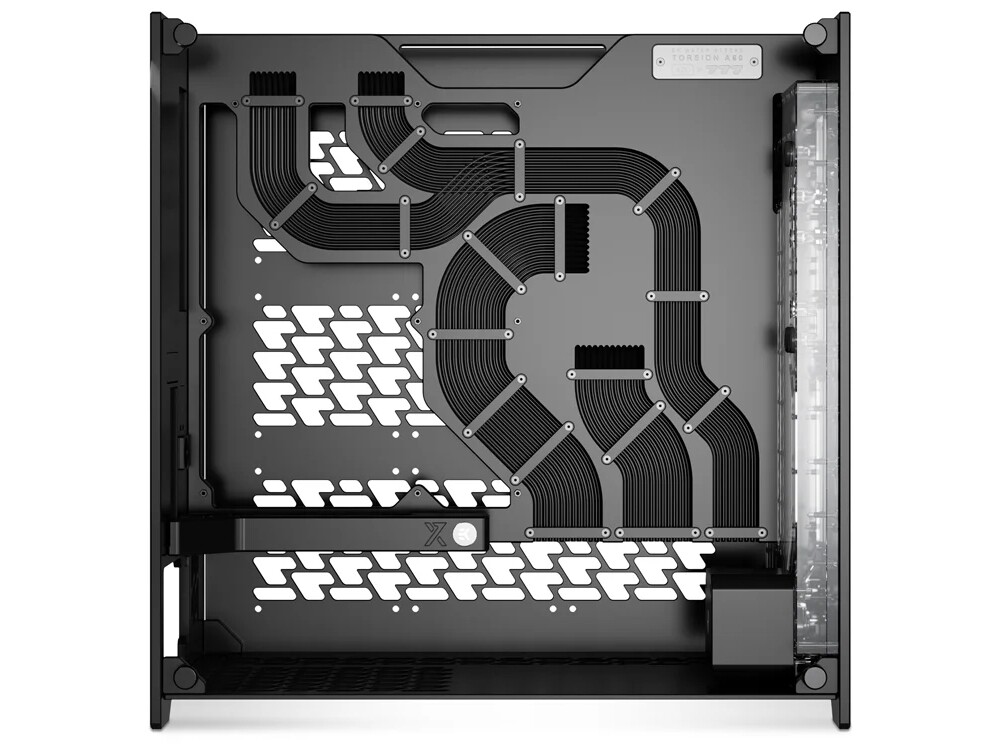

The EK-Quantum Torsion A60 allows for a clean and organized build, showcasing your cables. The thick aluminium motherboard tray features grooves for important power cables, including CPU EPS cables, PCIe power cables for the GPU, and ATX 24-pin motherboard cable. Each custom-sleeved cable fits into its own channel, and the case includes cable holders for different types of GPU connectors. The recommended cable diameter is 2.5 - 3.0 mm.

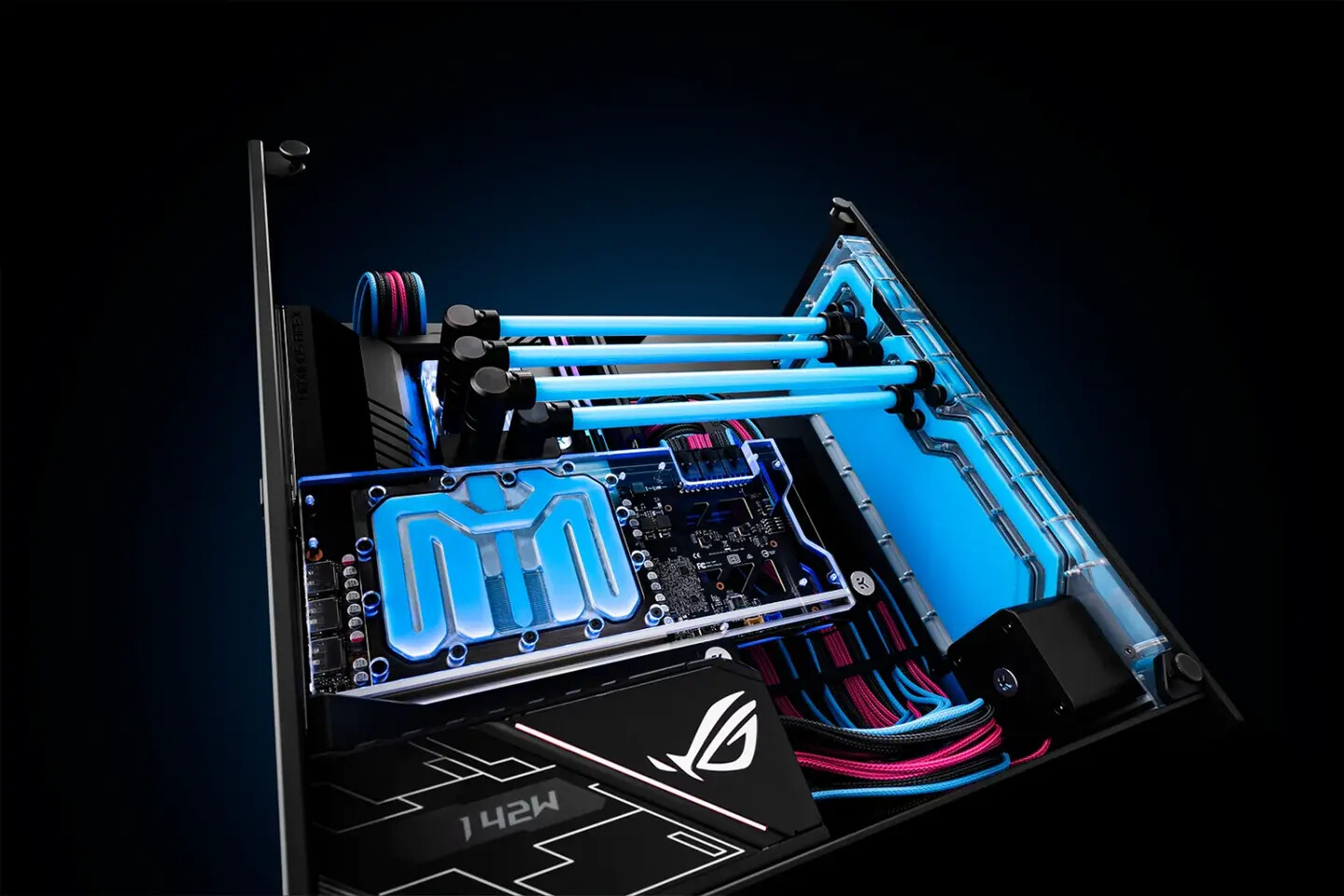

Integrated Premium Distribution Plate

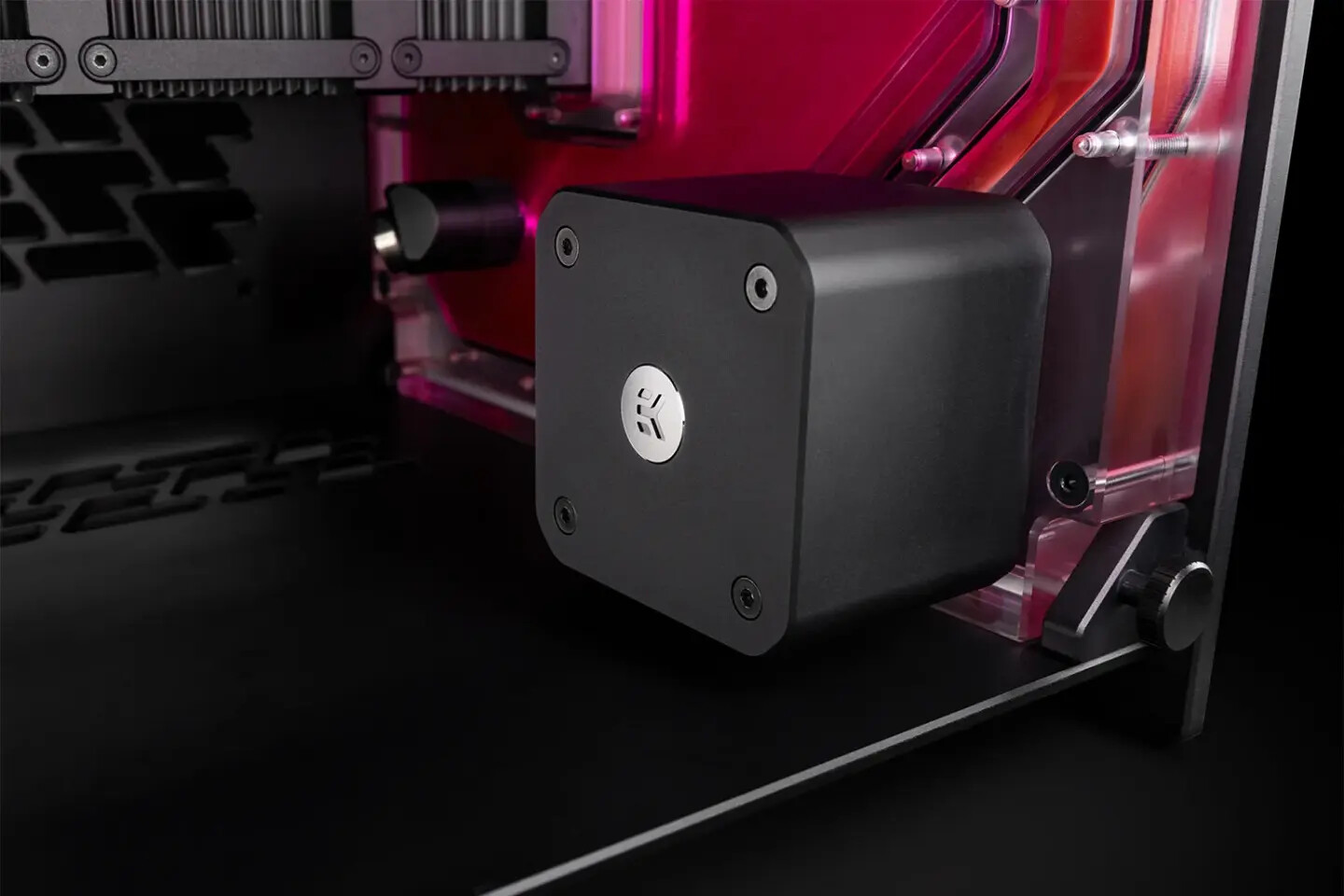

This case includes an advanced all-in-one waterway solution with a pump, reservoir, and multiple G1/4" threaded inlets and outlets. The placement of these inlets and outlets is precisely aligned with other EK Quantum products, simplifying tube routing and ensuring a clean and organized loop. The integrated distribution plate also features an addressable 14-LED strip compatible with popular RGB synchronization software.

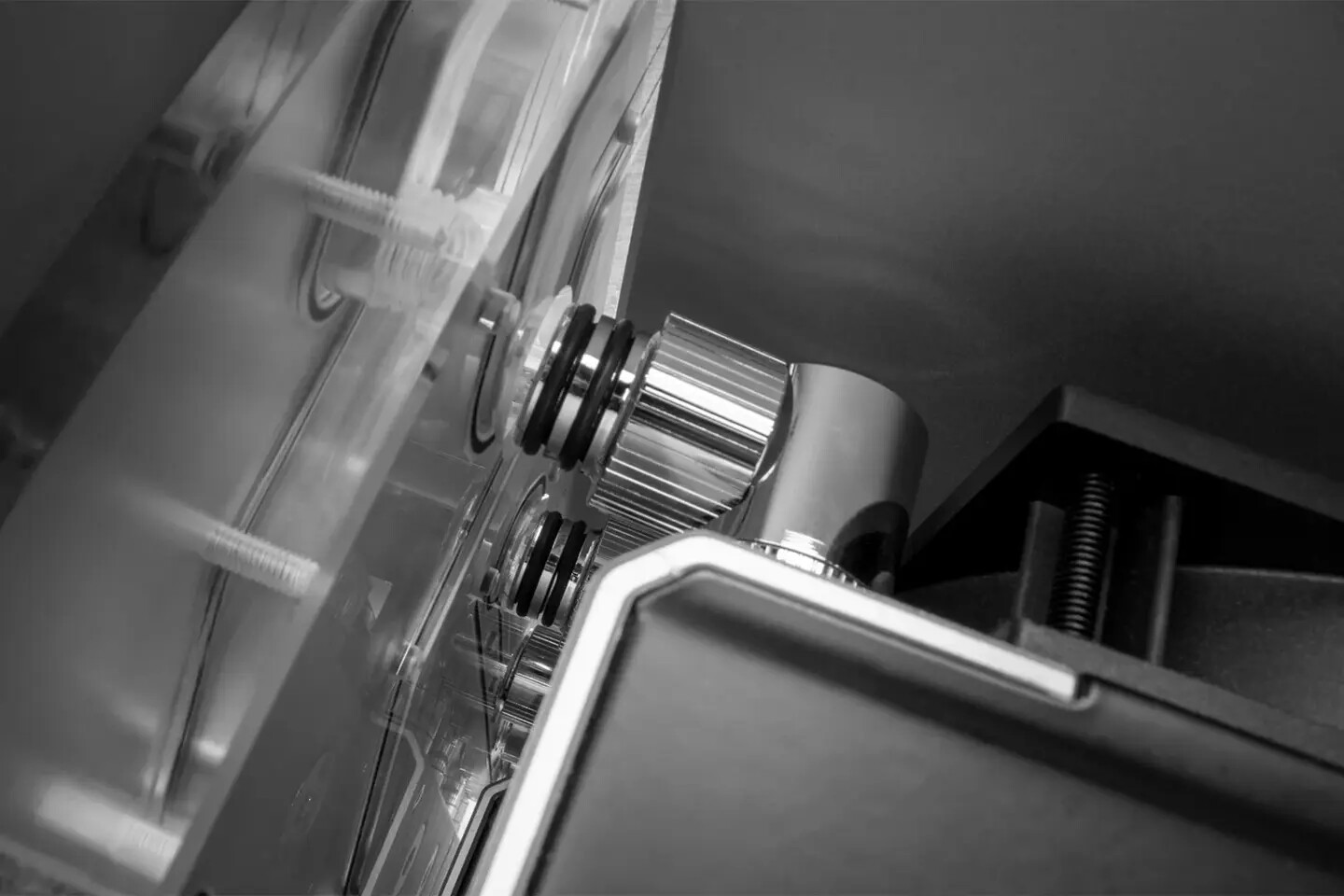

Radiator Support and Push-In Fittings

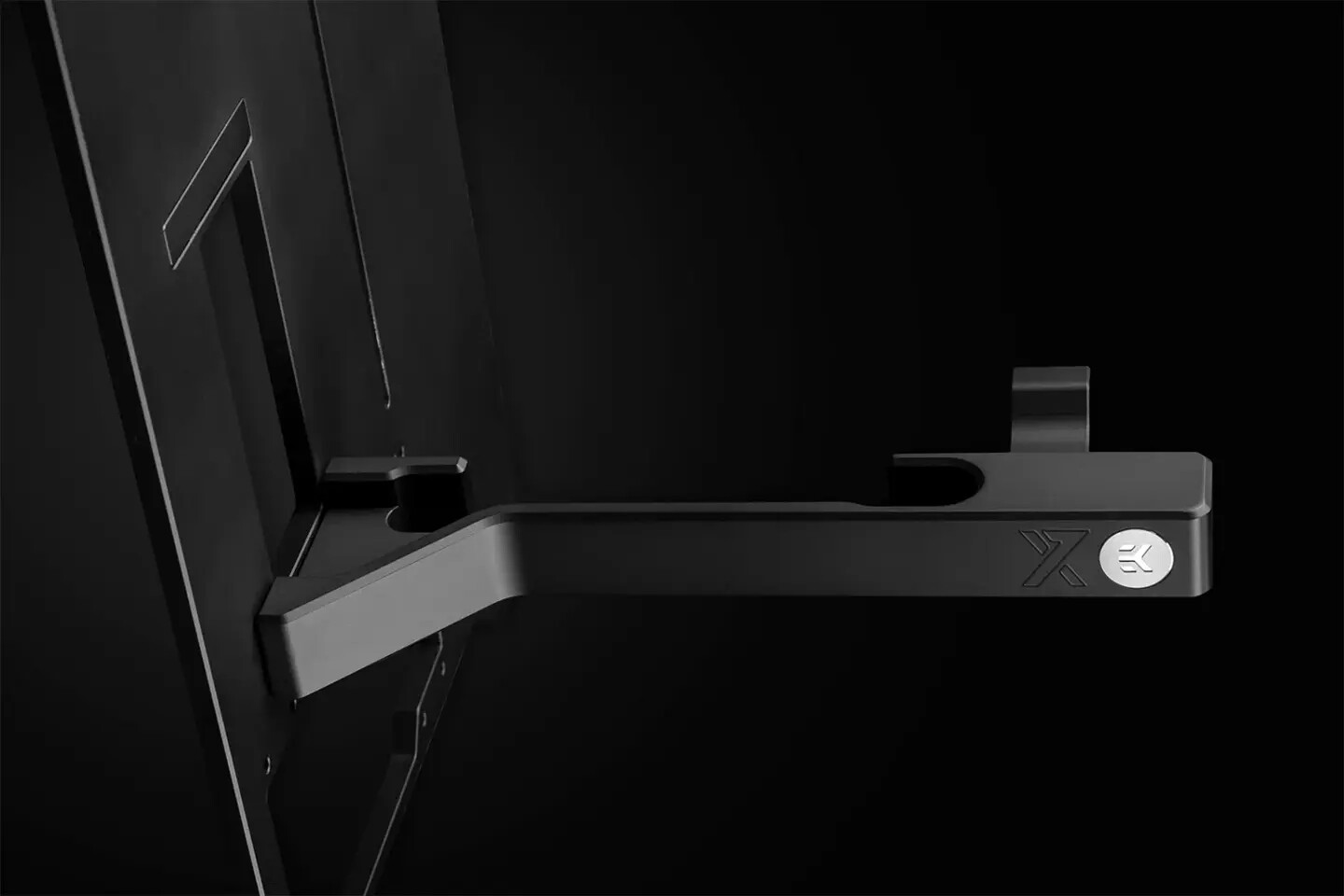

The EK-Quantum Torsion A60 supports up to three EK-Quantum Surface P360 radiators, allowing for efficient cooling of high-end hardware. The radiators are mounted using special push-in fittings, available separately. The case also features an integrated vertical GPU bracket made of aluminium, eliminating GPU sag and enhancing aesthetics.

Technical Specifications

• Dimensions (H x W x L): 485 x 276 x 476 mm
• Tempered Glass Panel: Yes
• Motherboard Compatibility: ATX, E-ATX
• Maximum GPU Length: 400mm
• Suggested GPU Width: 160mm (not mandatory)
• Radiators: Up to three EK-Quantum Surface P360
• Reservoir Dimensions (H x W x D): 415 mm x 251 mm x 92 mm
• Reservoir Volume: ~450ml
• D-RGB LED count: 14
• Pump Motor: PWM-controlled D5 pump

Availability and Pricing

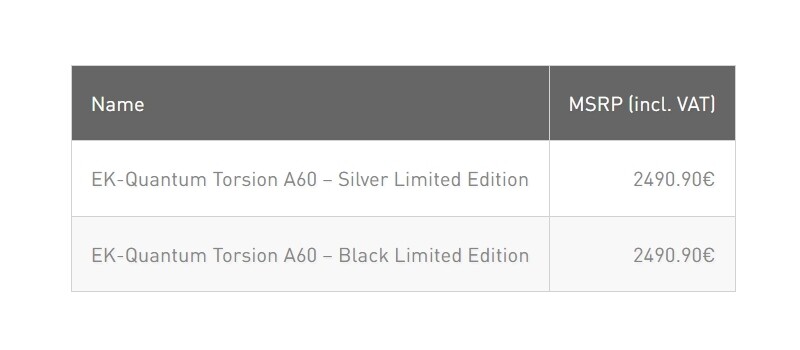

The EK-Quantum Torsion A60 Limited Edition case is available for pre-orders through the EK Webshop and partner reseller network. It is expected to ship out in mid-November 2023. The manufacturer's suggested retail price (MSRP), VAT included, is as follows:
