ASRock B550 Rock WiFi: A Modern AM4 Motherboard for Enthusiasts
The AMD Socket AM4 platform continues to be a popular choice among PC builders, thanks to the ongoing affordability of DDR4 memory and AMD’s commitment to supporting the platform. With the reintroduction of the Ryzen 7 5800X3D, AMD has revitalized the AM4 ecosystem, offering gamers and power users a compelling upgrade path. In response, motherboard manufacturers are releasing new AM4 boards, ensuring the platform remains relevant for years to come.

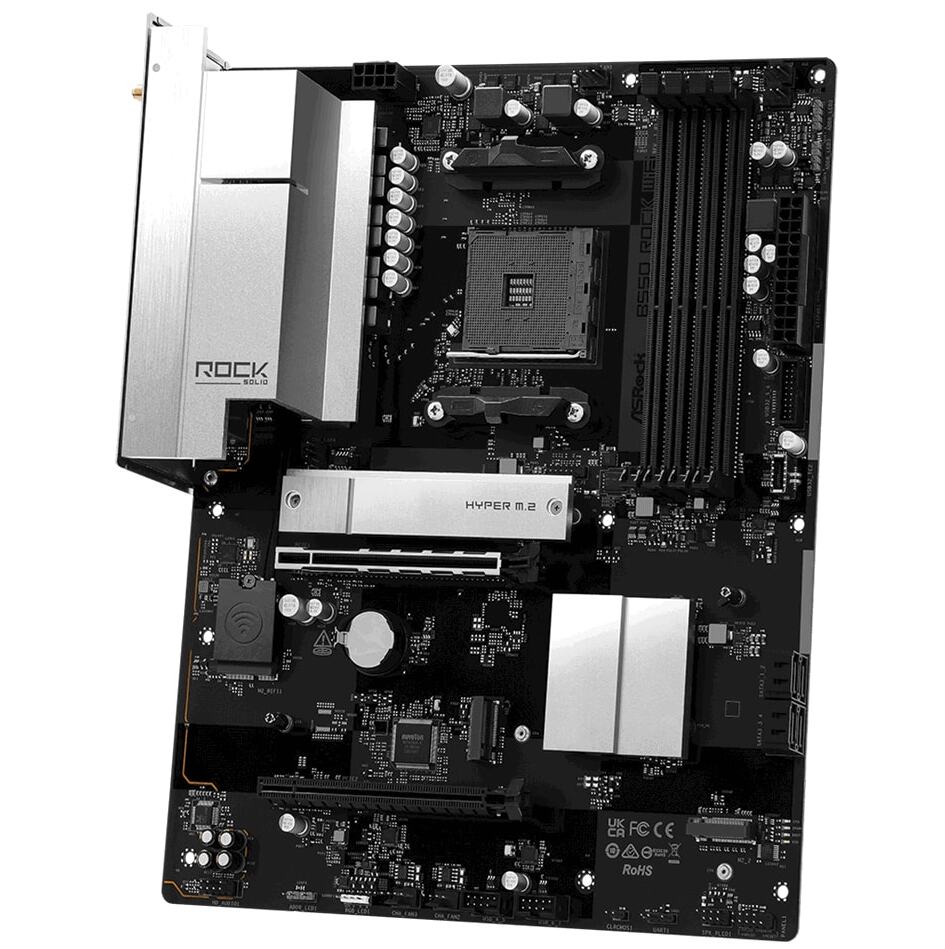

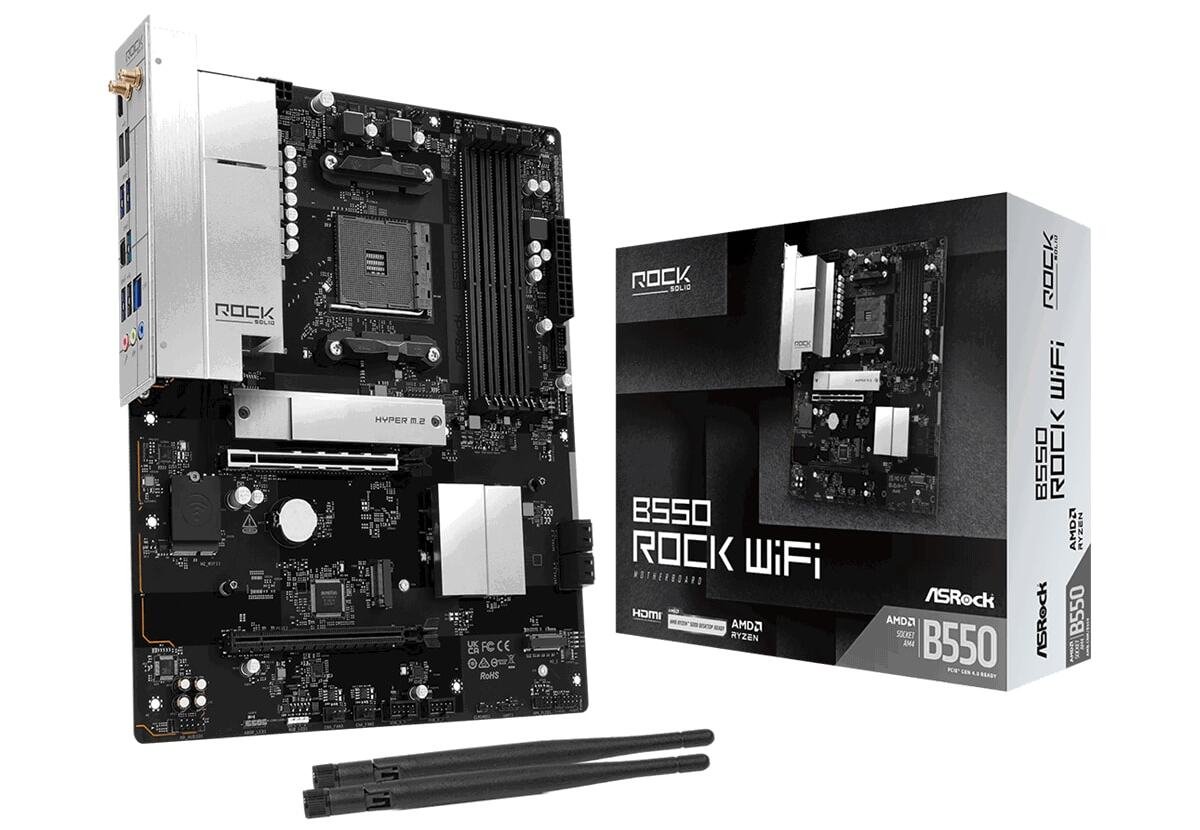

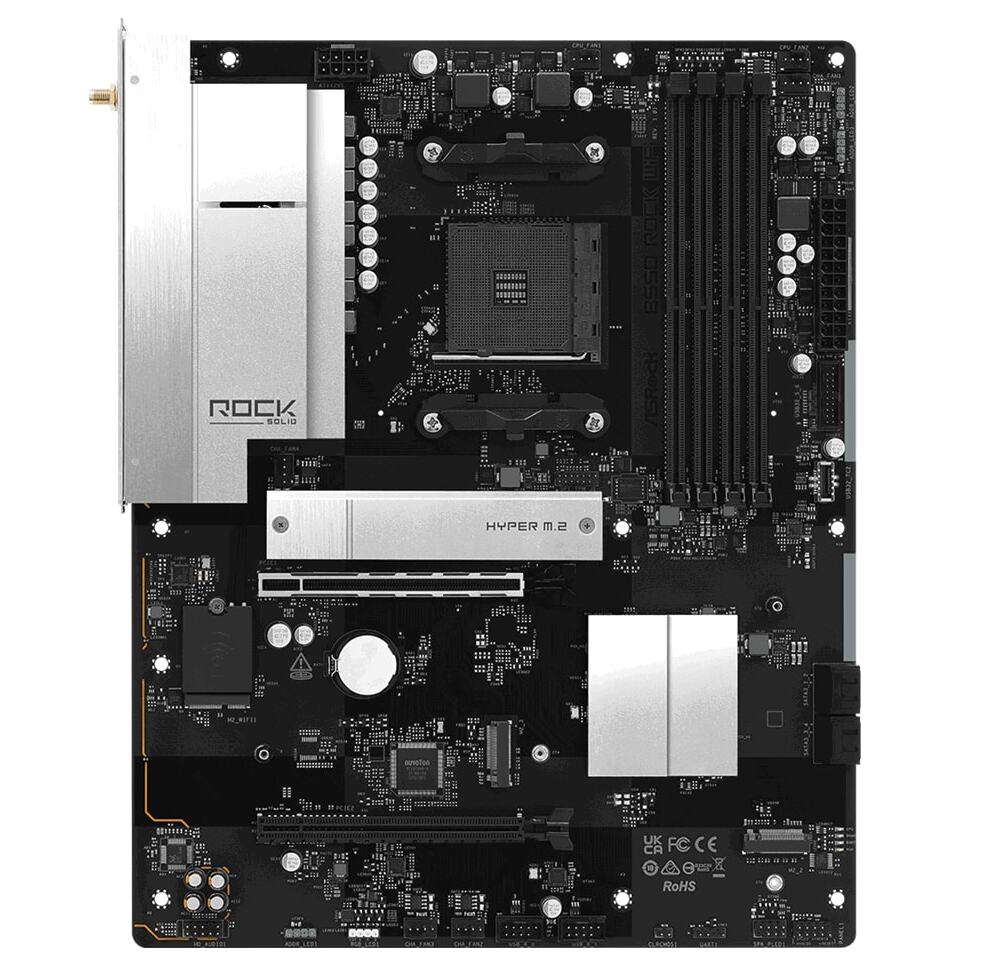

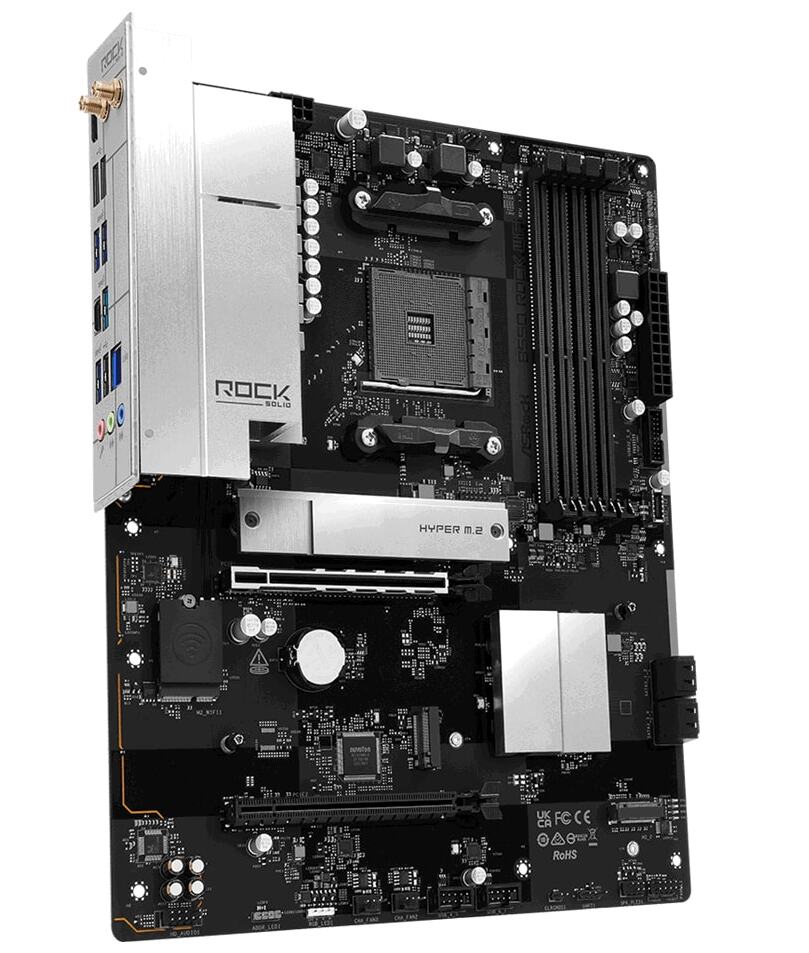

ASRock has expanded its lineup with the introduction of the B550 Rock WiFi, part of its new Rock series of entry-mainstream motherboards. Designed in the ATX form factor, the B550 Rock WiFi features a contemporary aesthetic, highlighted by robust, blocky heatsinks on the chipset and VRM areas. Power delivery is handled by a combination of a 24-pin ATX connector and a single 8-pin EPS connector, supporting an 8+2 phase CPU VRM for stable performance.
Comprehensive Memory and Expansion Support
The B550 Rock WiFi is equipped with four DDR4 DIMM slots, supporting up to 128 GB of DDR4-3200 memory. This ensures ample capacity and speed for gaming, content creation, and multitasking. For graphics and storage, the motherboard offers a PCI Express 4.0 x16 slot for high-performance GPUs, as well as an M.2 NVMe Gen 4 x4 slot with an integrated heatsink for fast SSDs.
Additional storage options include two M.2 Gen 3 slots—one operating at x4 and the other at x2 speeds—alongside four SATA 6 Gbps ports, providing flexibility for various storage configurations.
Advanced Connectivity and Networking Features

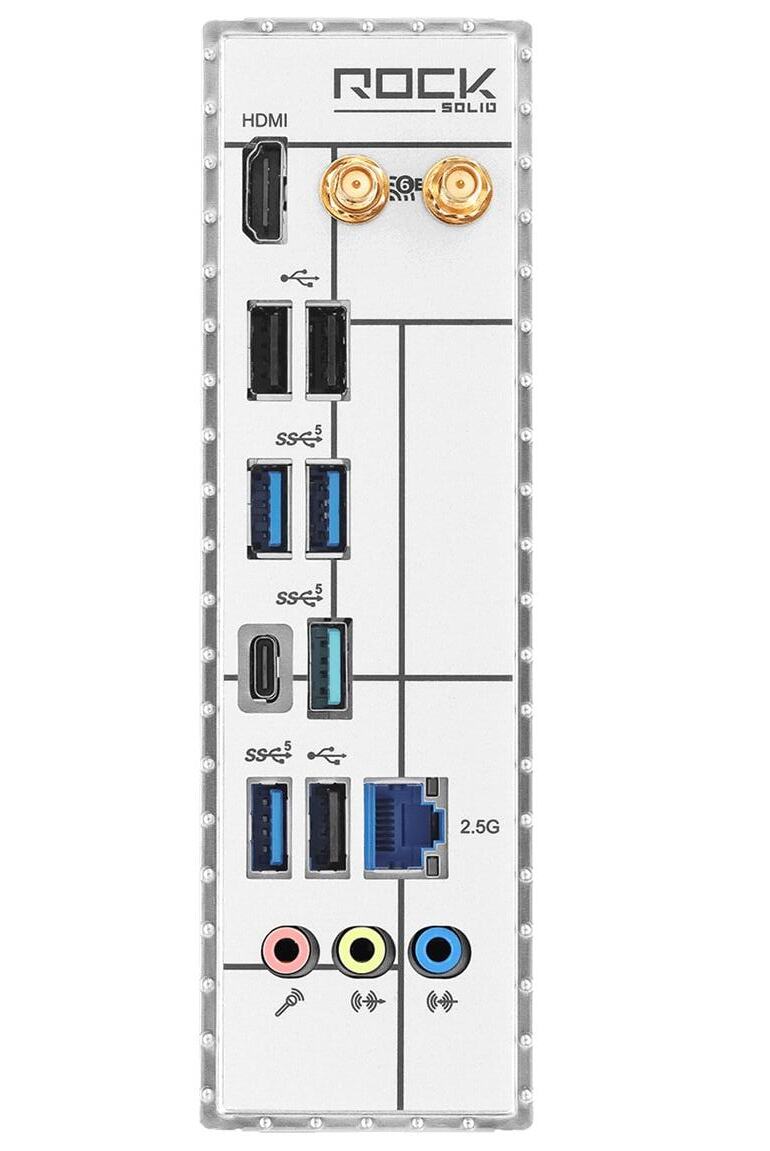

Networking on the B550 Rock WiFi is robust, featuring a 2.5 GbE wired Ethernet port powered by the Realtek DragonLAN RTL8125BG controller. For wireless connectivity, the board includes a Realtek RTL8852CE WLAN module installed in an easily accessible M.2-2230 E-key slot, supporting Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless networking and device pairing.
The onboard audio solution is powered by the Realtek ALC897 HDA codec, delivering reliable entry-level audio performance suitable for everyday use.
Conclusion
The ASRock B550 Rock WiFi stands out as a modern, feature-rich AM4 motherboard, offering a balanced mix of performance, connectivity, and expandability. With support for the latest DDR4 memory, PCIe 4.0, and advanced networking options, it provides an excellent foundation for building or upgrading an AMD-based system.
