MSI Unveils Prototype Graphics Card with Hidden 12V-2×6 Power Connector at Tokyo Game Show
At the recent Tokyo Game Show, MSI showcased an innovative prototype graphics card that reimagines cable management for modern PC builds. The new design conceals the 12V-2×6 power connector beneath the card’s cooler, following the Project Zero philosophy for a cleaner, more streamlined appearance.
Innovative Connector Placement for Enhanced Aesthetics

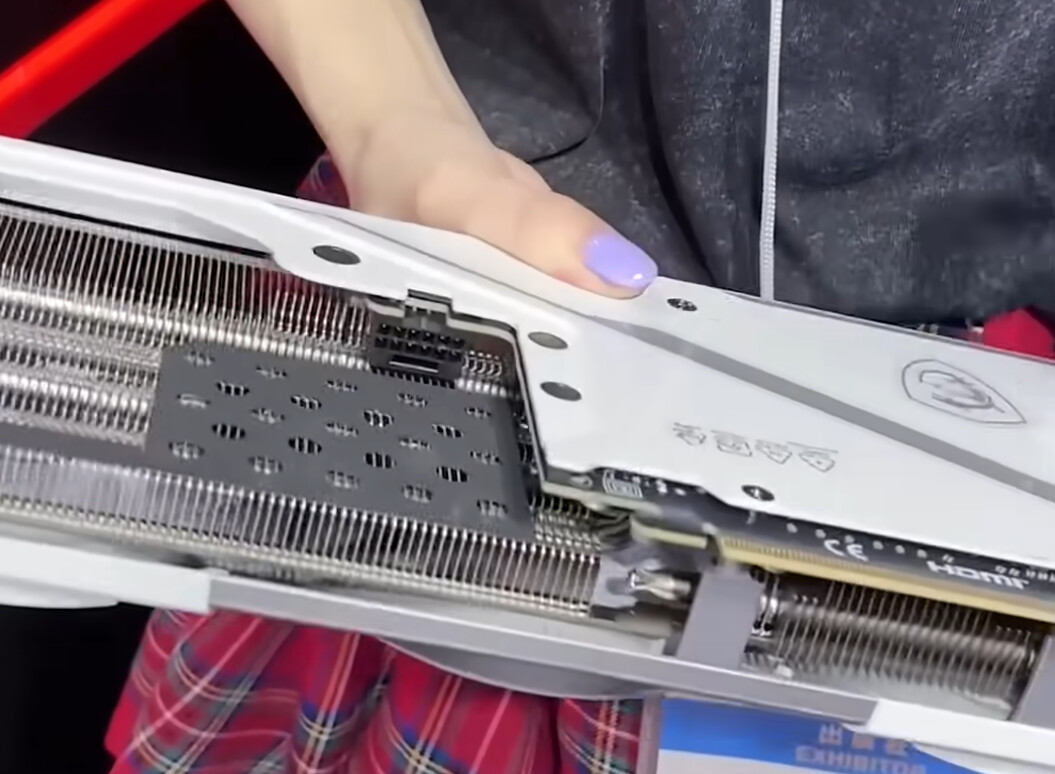

Traditionally, graphics card power connectors are positioned on the side of the PCB, often resulting in visible cables that can disrupt a build’s visual flow. MSI’s prototype moves the connector to the end of the PCB, hidden under the heatsink. This allows the power cable to be routed directly toward the motherboard tray, exiting behind a removable backplate. The result is a much tidier look, with cables kept out of sight and away from airflow paths.

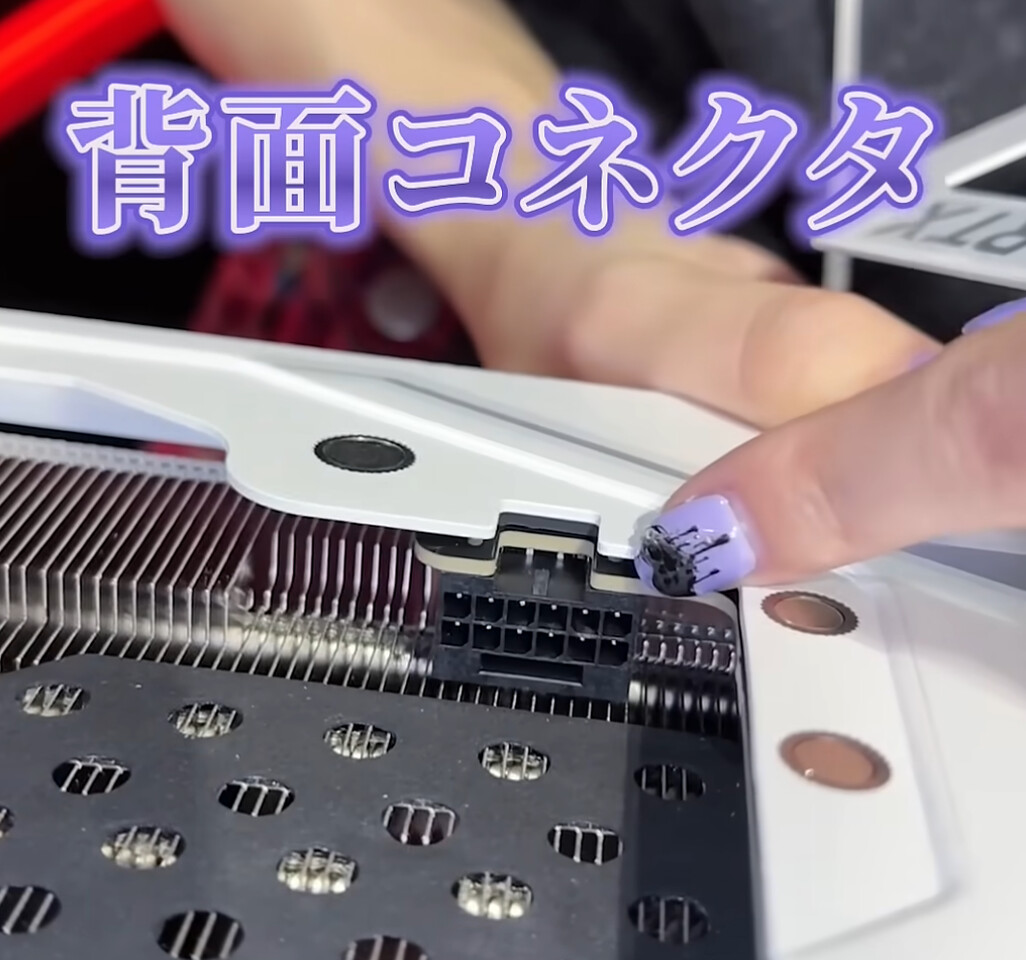

To accommodate this new layout, MSI has slightly extended the PCB, ensuring the power plug aligns naturally with the case’s cable management channels. A perforated pad protects the heatsink fins from abrasion where the cable passes, and a magnetic cover sits atop the connector, snapping off easily when access is needed. This thoughtful engineering not only improves aesthetics but also addresses practical concerns for PC builders.
Prototype Details and Project Zero Vision

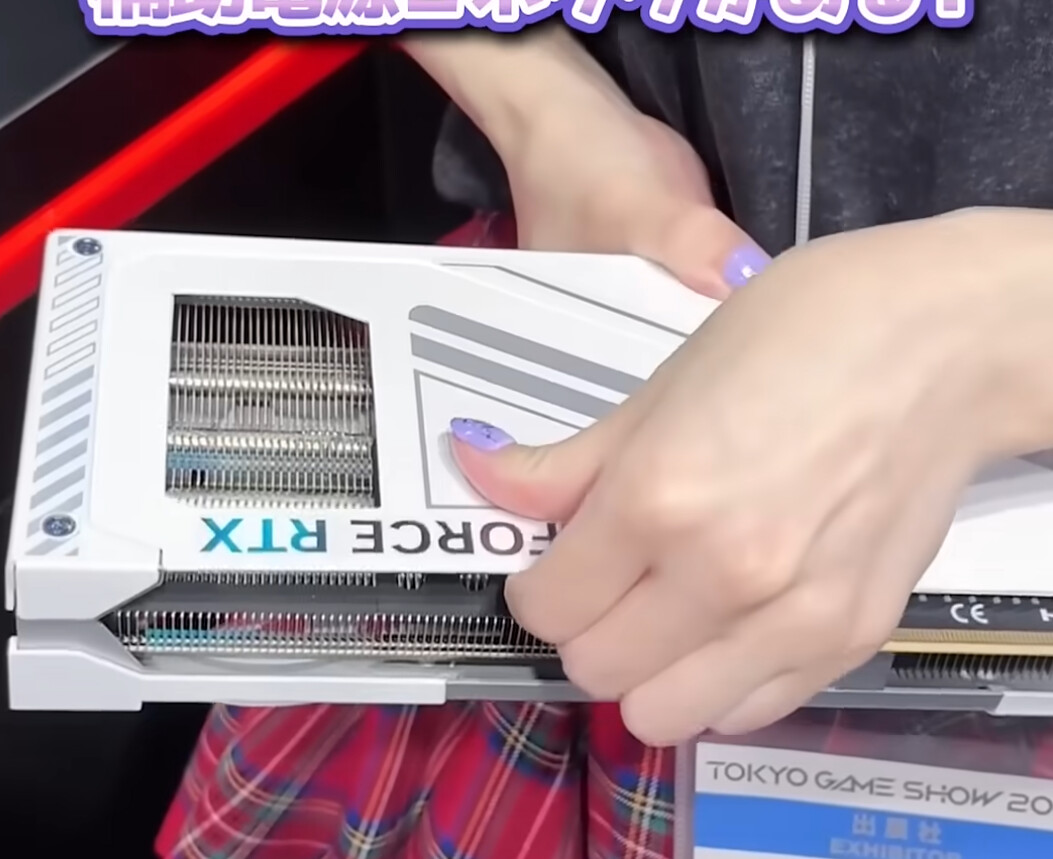

The prototype is based on a white Ventus 3X RTX 5070 Ti chassis. Notably, the addition of the concealing backplate reduces the flow-through opening for the third fan compared to the standard Ventus design. While this may have some impact on cooling performance, the trade-off is a much cleaner build with hidden cabling.
MSI has not confirmed whether this hidden-connector design will enter mass production or expand to other product lines. At the show, the company’s official materials focused on the cooler and future connector placement concepts, rather than the complete graphics card with the modified PCB.
Completing the "Visually Wireless" PC Build
This hidden power connector concept aligns with MSI’s broader Project Zero initiative, which already features motherboards with rear-mounted connectors and cases designed to conceal cables. Integrating concealed power plugs into graphics cards would further advance MSI’s goal of creating “visually wireless” PC builds, offering both improved aesthetics and simplified cable management for enthusiasts and system builders.
